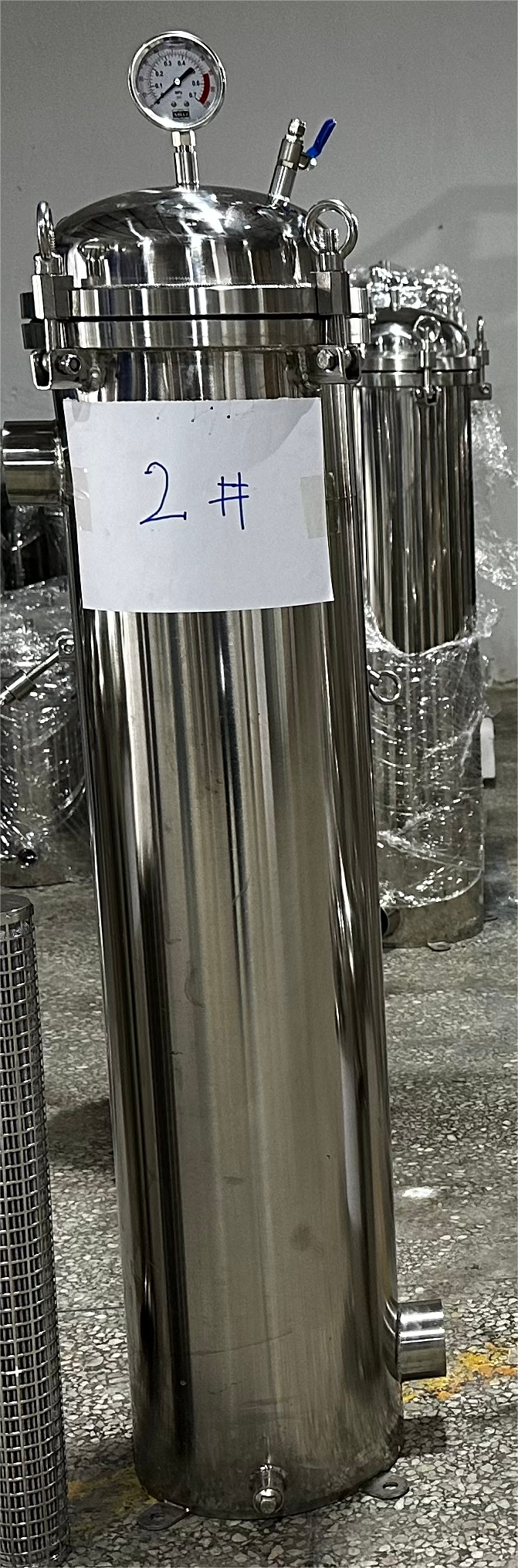

#2 bag filter /1bag /Stainless Steel 304 Single Bag Filter OEM/ODM

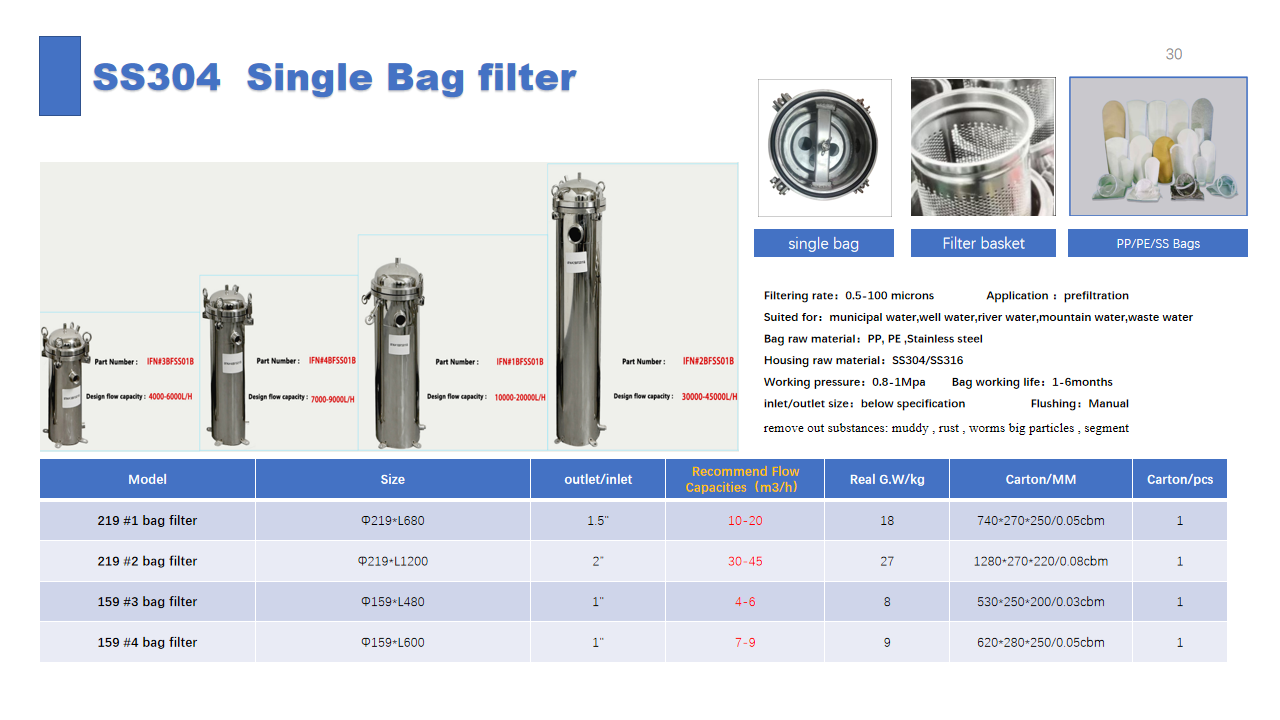

Specification


Filtration accuracy: 0.5um-200um（regular）

Inlet and outlet Location:  -Side in and side out;

  -Side in and bottom out;

-Top in and bottom out;

  -Top in and side out;

- Customized

Application

Beer, pharmaceuticals, chemicals, petroleum products, textile chemicals, industrial water, sugar water, ink, industrial wastewater, fruit juice, wax and other fields

Bag filter is a commonly used filter used to filter impurities in liquids. It consists of a bag  and an external housing, used to collect and remove impurities from the liquid.

First,the liquid enter into the housing from the inlet,which may placed in the side or on the top,and then flow into the filter bag which is braced by basket.Due to the impact pressure of fluid,the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet. Impurities are trapped in the bag,the filtration process is complete.
